Discover the Power of
Manual Transfer Switches
Enhance Your Portable Generator Experience
Swipe for more imagery
Features
- Safe: Prevents dangerous back-feeding to avoid injuring utility line workers.
- Versatile: Can be upgraded later for use with a Generac Home Standby Generator (max 11 kW).
- Universal: Compatible with any portable generator with GFCI protected outlets.
- Electronic Rocker Switch: Easily switches from utility to generator power with the simple push of a button.
- Power Indicator Lights: Display utility power or generator power.
- Powers hard-wired circuits: Directly powers hard-wired appliances such as a furnace, well pump, and lights.
- Easy to maintain and expand: Interchangeable type circuit breakers make it easy to reconfigure, replace, or expand the circuits in your switch.
- Pre-Wired: for quick and easy installation.
- Multi Listed: for use with Siemens, Eaton, and Square D 1-inch standard, tandem, GFCI, and AFCI breakers for the most flexible and cost-effective installation.
- Flexible Mounting Options: Flush or wall mount with left or right exit flexible ENT conduit included.
Accessories
- Manual to Auto Upgrade Kit
- Model 6869
Kit includes automatic upgrade panel and front cover.
UPC code: 696471068696
Shipping Dimensions (in./cm): 16.25 x 16 x 6.25 (41.3 x 40.6 x 15.9)
Weight (lbs/kg): 9.5 (4.3)

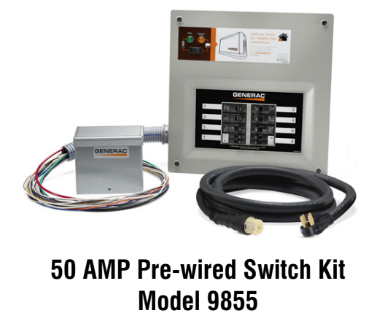

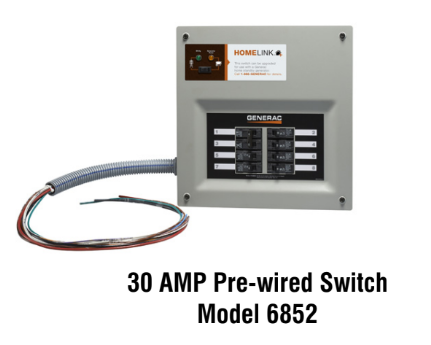

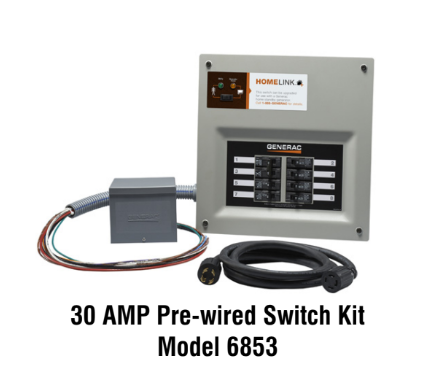

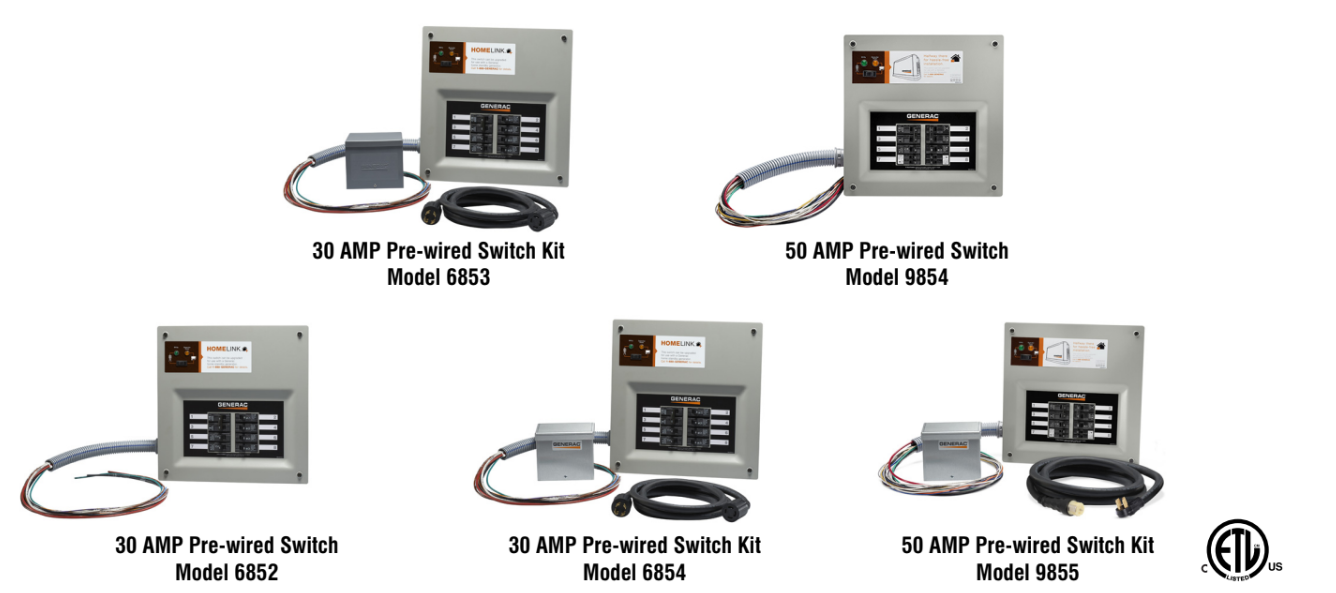

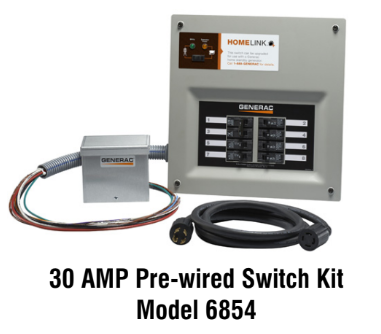

| Specifications | Model 6852 | Model 6853 | Model 6854 | Model 9854 | Model 9855 |
|---|---|---|---|---|---|
| Max Amps @ 240V | 30 Amp | 30 Amp | 30 Amp | 50 Amp | 50 Amp |
| Upgradeable for use with a Generac Home Standby Generator (up to 11 kW) | Yes | Yes | Yes | Yes | Yes |
| Enclosure | Indoor (NEMA 1) | Indoor (NEMA 1) | Indoor (NEMA 1) | Indoor (NEMA 1) | Indoor (NEMA 1) |
| Circuits Provided | 8 | 8 | 8 | 10 | 10 |
| Max # Circuits | 10 | 10 | 10 | 16 | 16 |
| Included Breakers | 1-30 Amp 2-pole 1-20 Amp 1-pole 5-15 Amp 1-pole |
1-30 Amp 2-pole 1-20 Amp 1-pole 5-15 Amp 1-pole |
1-30 Amp 2-pole 1-20 Amp 1-pole 5-15 Amp 1-pole |
1-30 Amp 2-pole 1-20 Amp 2-pole 2-20 Amp 1-pole 2-20 Amp 1-pole tandem |
1-30 Amp 2-pole 1-20 Amp 2-pole 2-20 Amp 1-pole 2-20 Amp 1-pole tandem |
| Accepts Arc-Fault and GFCI Breakers | Yes | Yes | Yes | Yes | Yes |
| Prewired | Yes | Yes | Yes | Yes | Yes |
| Conduit Size | 1 in. (2.54 cm) ENT with included fittings | 1 in. (2.54 cm) ENT with included fittings | 1 in. (2.54 cm) ENT with included fittings | 1-1/4 in. (3.18 cm) ENT with included fittings | 1-1/4 in. (3.18 cm) ENT with included fittings |
| Required Main Breaker in Load Center (provided by installer) | 50 Amp 2 pole | 50 Amp 2 pole | 50 Amp 2 pole | 50 Amp 2 pole | 50 Amp 2 pole |
| Male Inlet Configuration Outdoor Power Inlet Box | L14-30 NEMA 3R (not included) | L14-30 NEMA 3R | L14-30 NEMA 3R | CS6377 NEMA 3R (not included) | CS6377 NEMA 3R |
| Kit Contents | • Transfer Switch • Install manual, wiring harness, conduit and fittings • 12 in pre-wired whip |
• Transfer Switch • Cord: 10 ft. 10/4 with L14-30 male and female ends • Power Inlet Box: 30 Amp resin (must be hardwired) • Install manual, wiring harness, conduit and fittings • 12 in pre-wired whip |
• Transfer Switch • Cord: 10 ft. 10/4 with L14-30 male and female ends • Power Inlet Box: 30 Amp aluminum (must be hardwired) • Install manual, wiring harness, conduit and fittings • 12 in pre-wired whip |
• Transfer Switch • Install manual, wiring harness, conduit and fittings • 12 in pre-wired whip |
• Transfer Switch • Cord: 10 ft. 6/4 with CS6364 female and NEMA 14-50 male ends • Power Inlet Box: 50 Amp aluminum (must be hardwired) • Install manual, wiring harness, conduit and fittings • 12 in pre-wired whip |
| Switch Dimensions (in./cm) | 15.4 L x 15.8 H x 4 D 39.1 L x 40.1 H x 10.2 D |
15.4 L x 15.8 H x 4 D 39.1 L x 40.1 H x 10.2 D |
15.4 L x 15.8 H x 4 D 39.1 L x 40.1 H x 10.2 D |
15.4 L x 15.8 H x 4 D 39.1 L x 40.1 H x 10.2 D |
15.4 L x 15.8 H x 4 D 39.1 L x 40.1 H x 10.2 D |
| Shipping Dimensions (in./cm) | 25.8 L x 18.7 W x 7.8 H 65.5 L x 47.5 W x 19.8 H |
25.8 L x 18.7 W x 7.8 H 65.5 L x 47.5 W x 19.8 H |
25.8 L x 18.7 W x 7.8 H 65.5 L x 47.5 W x 19.8 H |
18.5 L x 18.0 W x 11.5 H 47.0 L x 46.0 W x 30.0 H |
18.5 L x 18.0 W x 11.5 H 47.0 L x 46.0 W x 30.0 H |
| Shipping Weight (lbs/kg) | 26 (11.8) | 27.5 (12.5) | 27.2 (12.3) | 27.2 (12.3) | 33 (15.0) |
| UPC codes | 696471068528 | 696471068535 | 696471068542 | 696471071481 | 696471071498 |
| Compatible With | Portable generators with a 30-Amp L14-30R receptacle | Portable generators with a 50-Amp 14-50R receptacle | Portable generators with a 50-Amp 14-50R receptacle | Portable generators with a 50-Amp 14-50R receptacle | Portable generators with a 50-Amp 14-50R receptacle |
| Warranty | 5 Year Limited | 5 Year Limited | 5 Year Limited | 5 Year Limited | 5 Year Limited |
